ADS LED
Power Supply
Our ADS LED Power Supply Products
Reliable, efficient, and built to power vibrant signage.
At Maruti Flex Traders LLP, we bring you a premium range of ADS LED Power Supply solutions designed for reliable performance and long-lasting efficiency. Engineered with advanced technology, these power supplies are ideal for LED signage, channel letters, lightboxes, and other indoor & outdoor display applications.
Whether it’s rainproof or waterproof models, every unit is built to deliver stable constant voltage, high transfer efficiency, and maximum safety protections for your signage projects.

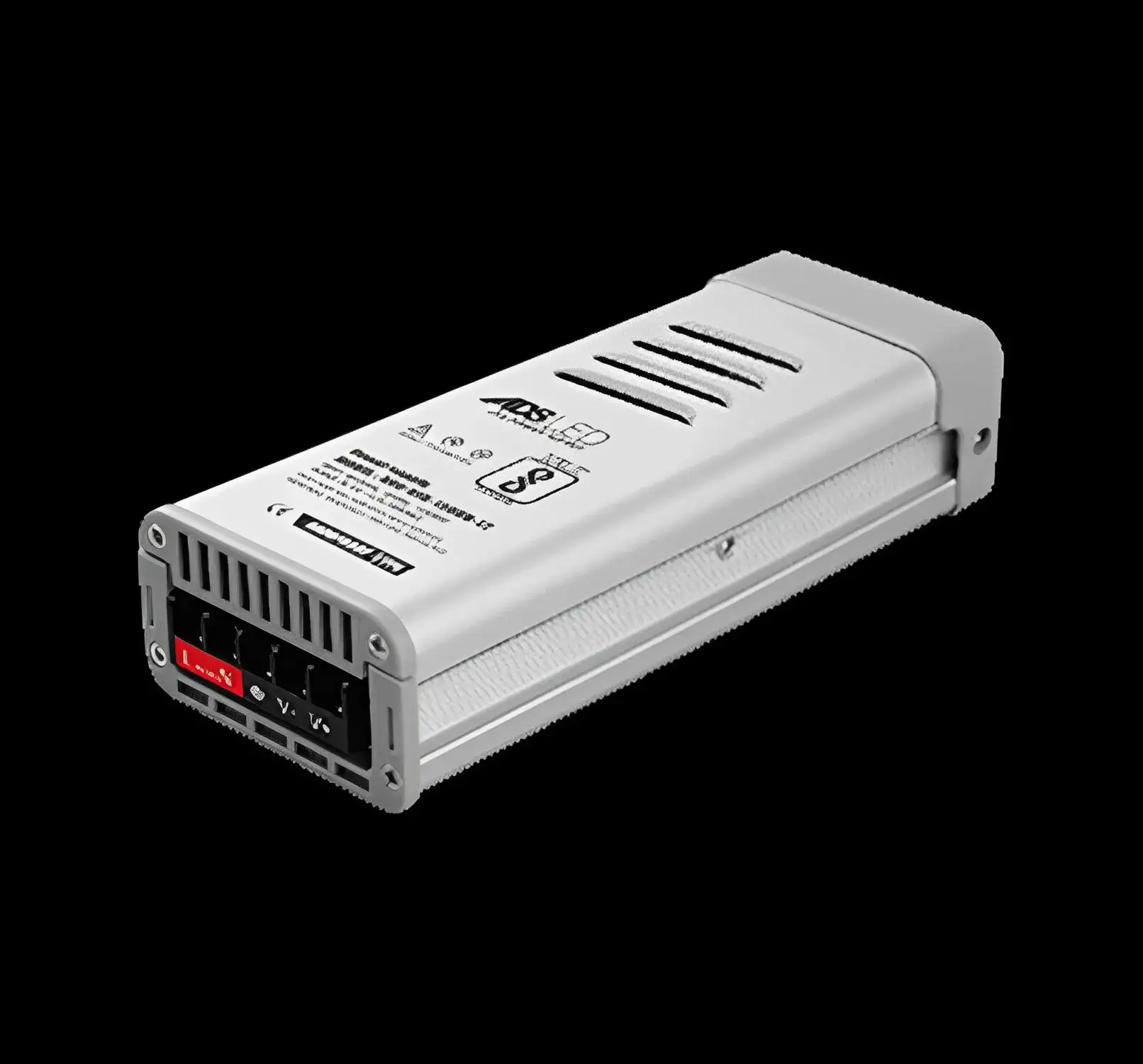

ADS LED POWERSUPPLY - RAINPROOF SERIES
The ADS LED Power Supply (Rainproof Series) is designed for outdoor sign cabinets and façade lighting that need weather resistance without a sealed enclosure. It offers stable 12V output, low ripple, high efficiency, and rugged construction for long service life in signage applications.
Features
3 Years Warranty
Rainproof design for outdoor use
Stable constant voltage output
High efficiency performance
100% full load with 100% burn-in tested
Overload & short-circuit protection
Technical Specifications
| Model | Input | Output | Output Power | Dimension (mm) | Weight |
|---|---|---|---|---|---|
| ADS-HFX-60GB-12 | 170–250 VAC | 12 VDC / 5 Amps | 60 Watts | 130 × 67 × 36 | 205 g |
| ADS-HFX-150GB-12 | 170–250 VAC | 12 VDC / 10 Amps | 150 Watts | 185 × 68 × 35 | 320 g |
| ADS-HFX-200GB-12 | 170–250 VAC | 12 VDC / 16.7 Amps | 200 Watts | 170 × 96 × 46 | 460 g |
| ADS-HFX-300GB-12 | 170–250 VAC | 12 VDC / 25 Amps | 300 Watts | 198 × 96 × 46 | 550 g |
| ADS-HFX-400GB-12 | 170–250 VAC | 12 VDC / 33.3 Amps | 400 Watts | 200 × 110 × 50 | 670 g |

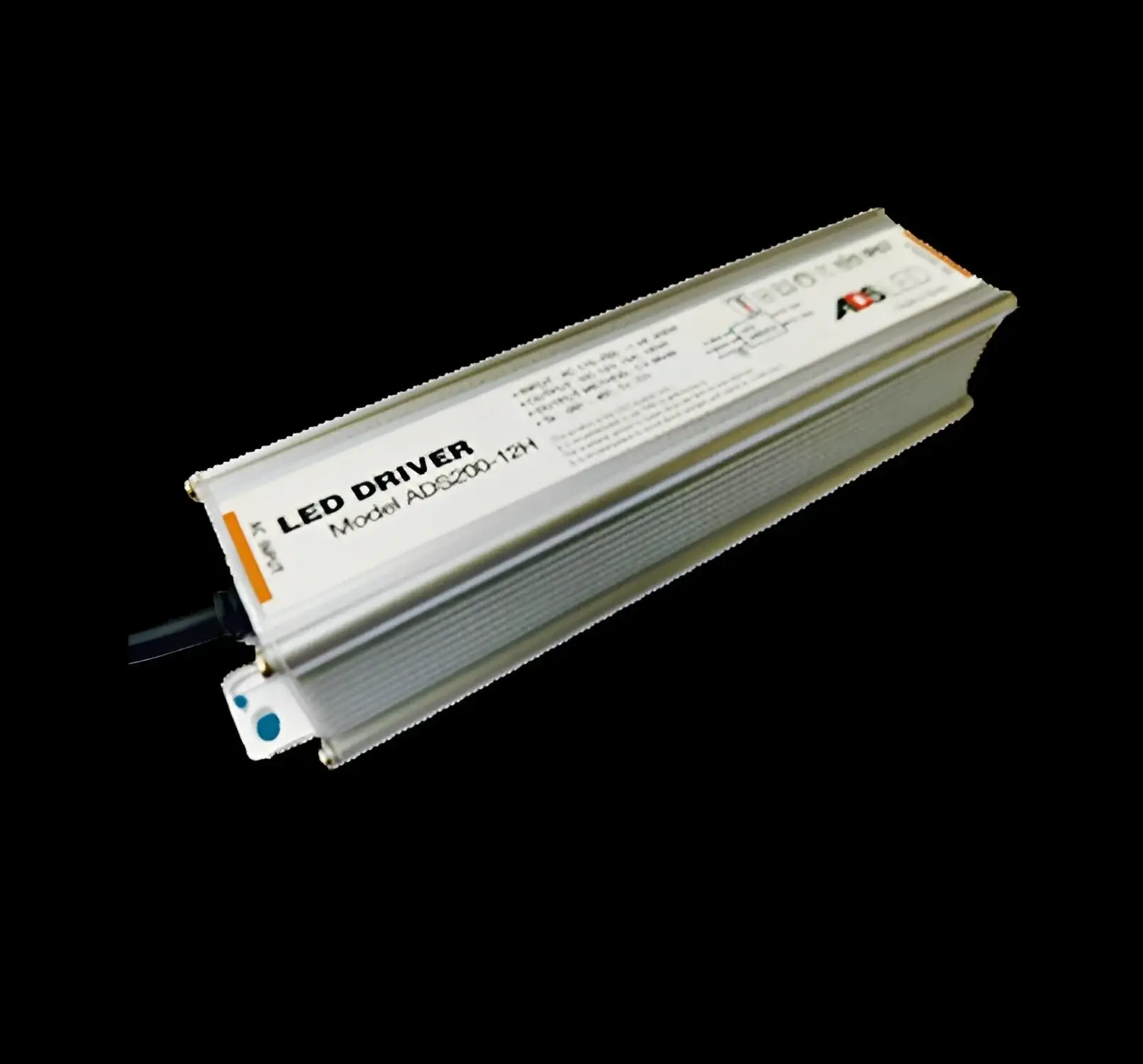

ADS LED Power Supply – Waterproof Series
The ADS LED Power Supply (Waterproof Series, IP67) is fully sealed for harsh environments and exposed installs. Ideal for backlit boxes, channel letters, and architectural lighting, it ensures constant voltage, superior transfer efficiency, and reliable operation in rain, dust, and humidity while safeguarding LEDs with integrated protections.
Features
3 Years Warranty
High transfer efficiency
IP67 rated for indoor & outdoor use
Stable constant voltage output
Fully tested at 100% load
Overload & short-circuit protection
Features
| Model | Input | Output | Output Power | Dimension (mm) | Weight |
|---|---|---|---|---|---|
| ADS30-12H | 170–250 VAC / Max. 0.19A | 12 VDC / 1.5 Amps | 30 Watts | 162 × 29 × 21 | 250 g |
| ADS60-12H | 170–250 VAC / Max. 0.24A | 12 VDC / 2.5 Amps | 60 Watts | 180 × 40 × 22 | 390 g |
| ADS100-12H | 170–250 VAC / Max. 0.48A | 12 VDC / 5 Amps | 100 Watts | 183 × 49 × 34 | 420 g |
| ADS150-12H | 170–250 VAC / Max. 0.76A | 12 VDC / 8.3 Amps | 150 Watts | 183 × 49 × 34 | 420 g |
| ADS200-12H | 170–250 VAC / Max. 1.25A | 12 VDC / 12.5 Amps | 200 Watts | 183 × 49 × 34 | 420 g |
| ADS300-12H | 170–250 VAC / Max. 1.6A | 12 VDC / 16.67 Amps | 300 Watts | 200 × 54 × 38 | 560 g |
| ADS400-12H | 170–250 VAC / Max. 1.76A | 12 VDC / 20.83 Amps | 400 Watts | 220 × 65 × 30 | 900 g |
| ADS500-12H | 170–250 VAC / Max. 1.76A | 12 VDC / 20.83 Amps | 500 Watts | 240 × 65 × 40 | 1100 g |
