SNAP PROFILE
Snap Profiles – Durable Aluminium Snap Frame Systems for Illuminated Displays
Smart & Sleek Aluminium Snap Profiles for Indoor Signage and Displays
At Maruti Flex Traders LLP, we provide a versatile range of Snap Profiles crafted from premium Aluminium Alloy 6063-T6 with an anodised finish for durability and rust resistance. These profiles are designed for quick-change signage systems, making them perfect for retail shops, hotels, shopping malls, airports, exhibitions, and corporate branding. Available in single side and double side options, Snap Profiles deliver even brightness, easy front-opening access, and long-lasting performance. With applications in wall-mounted frames, backlit displays, window signage, and suspended installations, they offer the perfect blend of functionality and aesthetics.
Explore Our Snap Profile Variants

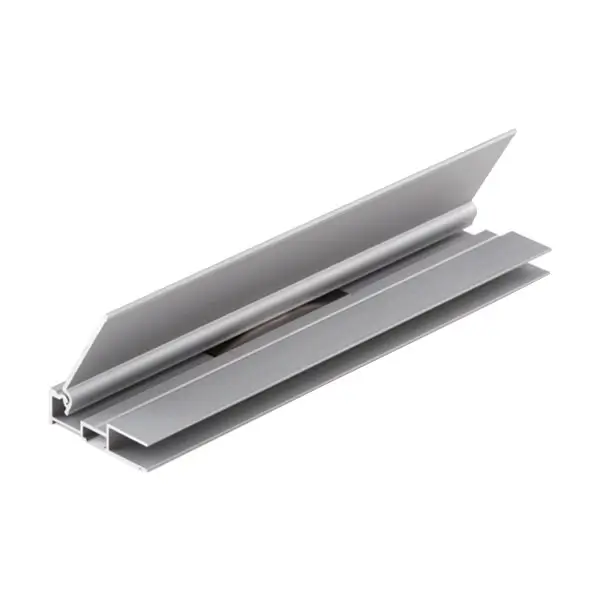

Snap Profile: K-P2
The K-P2 Snap Profile is a slim and lightweight aluminium profile designed for indoor illuminated signage. Ideal for hotels, shopping malls, airports, retail shops, and cloud control displays, it features a single-sided wall-mount design with LGP backlit technology. The profile supports UV and Dye ink prints on translit media, ensuring bright and vibrant visuals for premium display applications.
Technical Specifications
Application: Indoor use for signage and display systems
Mounting Type: Wall mount (single side)
Backlit: Yes (Single Side)
Print Media Supported: Translit sheets
Ink Compatibility: UV & Dye inks
Durability: Corrosion-resistant anodised aluminium for long life
Specifications
Material: Aluminium Alloy 6063-T6 (Anodised finish)
Depth: 12 mm
Thickness: 1.25 mm
Weight: 0.350 Kg/mtr
Side Options: Single-Sided
Length: 3.60 mtrs
Lighting: LGP (Light Guide Panel)
Specifications
Frame Type: Standard Pre-Fabricated Snap Profile (K-20S)
Applications: Retail displays, corporate branding, exhibition stands, restaurants, airports, shopping malls
Mounting Options: Wall mount, single side, double side, backlit
Brightness: ~2800 to 3200 Lux
Lighting: Even illumination with high-quality LED backlighting
Turnaround Time: Quick (always available in stock)
Warranty: 3 Years
Advantages:
Always available, quick turnaround
More economical than custom sizes
Outstanding brightness with uniform lighting
Available in multiple frame sizes
Option for custom sizes as per requirement

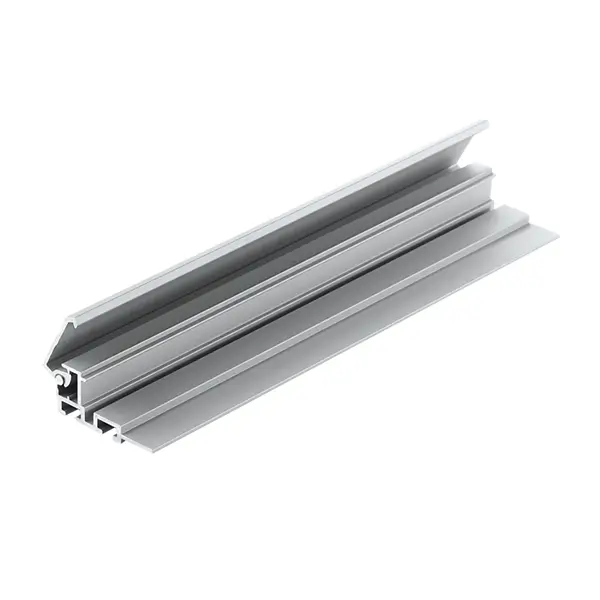

SNAP PROFILE : K - 20S
The K-20S Snap Profile Light Box is a premium display solution designed for outstanding visual impact in retail, corporate, and exhibition environments. With standard pre-fabricated sizes, it offers exceptional brightness, even illumination, and long-lasting performance. Its slim snap-frame design makes it quick and easy to update graphics, making it the ideal choice for high-traffic areas where visuals change frequently.
Available in single side, double side, wall-mount, and backlit options, this versatile light box combines durability with energy efficiency, ensuring vibrant displays while keeping operational costs low.
Technical Specification
| Model | Insert Size (W x H) | Frame Size (W x H) | Current (Amps) | Power (Watts) |
|---|---|---|---|---|
| ES8511 | 8.5” × 11” | 9.75” × 12.25” | 0.34A | 4.1W |
| ES1117 | 11” × 17” | 12.25” × 18.25” | 0.52A | 6.3W (likely typo in your data, corrected) |
| ES1722 | 17” × 22” | 18.25” × 23.25” (corrected from 2.25”) | 0.68A | 8.1W |
| ES2228 | 22” × 28” | 23.25” × 29.25” | 1.72A | 20.7W |
| ES2436 | 24” × 36” (corrected) | 25.25” × 37.25” | 2.22A | 26.6W |
| ES2448 | 24” × 48” | 25.25” × 49.25” | 2.95A | 35.4W |
| ES3648 | 36” × 48” | 37.25” × 49.25” | 2.95A | 35.4W |
Specifications

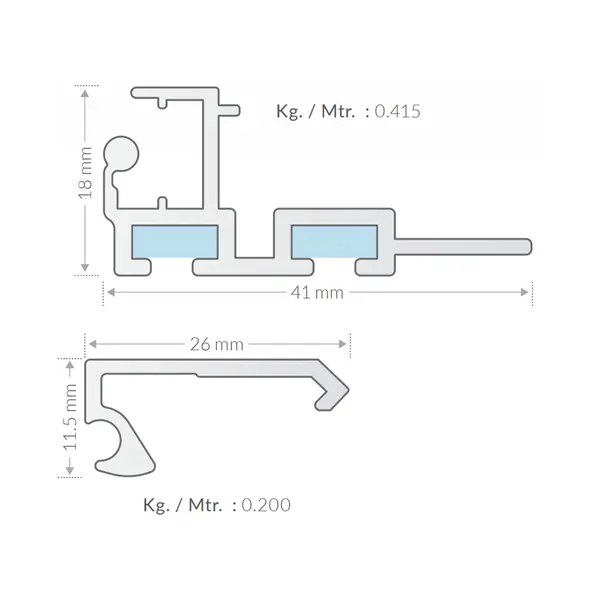

| Specification | K-20S (Single Side) | K-40D (Double Side) |
|---|---|---|
| Side | Single Side | Double Side |
| Frame Thickness | 20 mm | 47 mm |
| Frame Width | 26 mm | 22 mm |
| Minimum Size | 210 × 254 mm | 305 × 305 mm |
| Maximum Size | 915 × 2400 mm | 915 × 2400 mm |
| Light Guide Panel (LGP) | 3 mm & 5 mm Acrylic (PMMA) with V-Cut Groove | 3 mm & 5 mm Acrylic (PMMA) with V-Cut Groove |
| Frame / Color | Anodised Aluminium / Silver & Black | Anodised Aluminium / Silver & Black |
| Open / Close Mechanism | Snap Front Open / Close | Snap Front Open / Close |

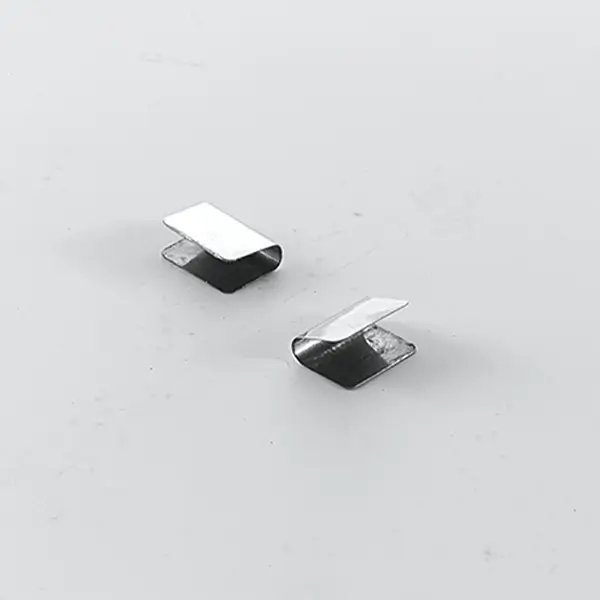

| Mounting | Wall mount by clip | Suspending by wire or rod |
| Weight | 1.30 kg / sq. ft | 1.80 kg / sq. ft |
| Input Voltage | DC 12V / AC 100–240V, 50/60Hz | DC 12V / AC 100–240V, 50/60Hz |
| Luminous Efficiency (LED) | 105 lm/W | 105 lm/W |
| LED Side Placement | Small size: 1 edgeMedium size: 2 long edgesLarge size: 4 edges | Small size: 1 edgeMedium size: 2 long edgesLarge size: 4 edges |
| LED Color Temperature | 6500K | 6500K |
| Power Cord / Supply | 18W / meter | 18W / meter |
| Dimming | By external dimmer (optional) | By external dimmer (optional) |
| Operating Temperature | -30°C (22°F) to +40°C (104°F) | -30°C (22°F) to +40°C (104°F) |
| Environment | Indoor, dry location | Indoor, dry location |

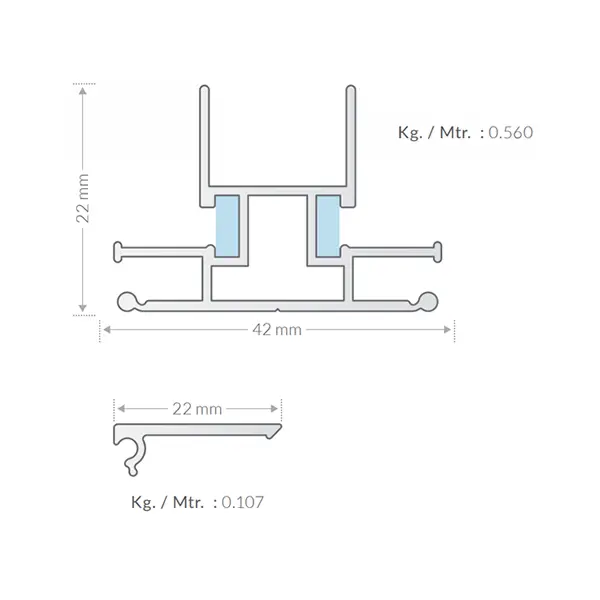

SNAP PROFILE: K-40D
The K-40D Snap Profile Light Box is a double-sided, backlit display system designed for high-impact visual communication. With a thicker profile than the K-20S, it is ideal for applications requiring visibility from both sides such as retail storefronts, airports, shopping malls, exhibitions, and indoor branding. Its anodized aluminum frame ensures durability, while the snap front open/close mechanism allows quick and easy graphic changes. Powered by energy-efficient LEDs with high luminous efficiency (105 lm/W), the K-40D delivers uniform brightness and long-lasting performance.
