Special Aluminium Profiles for Modern Displays
Display Stands for Every Occasion
Versatile. Durable. Innovative.
At Maruti Flex Traders LLP, we offer a premium range of special aluminium profiles engineered for signage, branding, and architectural displays. From K-130 Facade and K-83 Facade profiles for large-scale light boxes to K-16 Oval, K-Totem, and K-65 Cube systems for retail, kiosks, and exhibitions, our solutions deliver unmatched strength, flexibility, and aesthetic appeal. Designed for indoor and outdoor applications, these profiles support PVC flex, fabric, acrylic, and ACP media, ensuring professional presentations that are easy to maintain and built to last.
OUR SPECIAL PROFILE COLLECTION

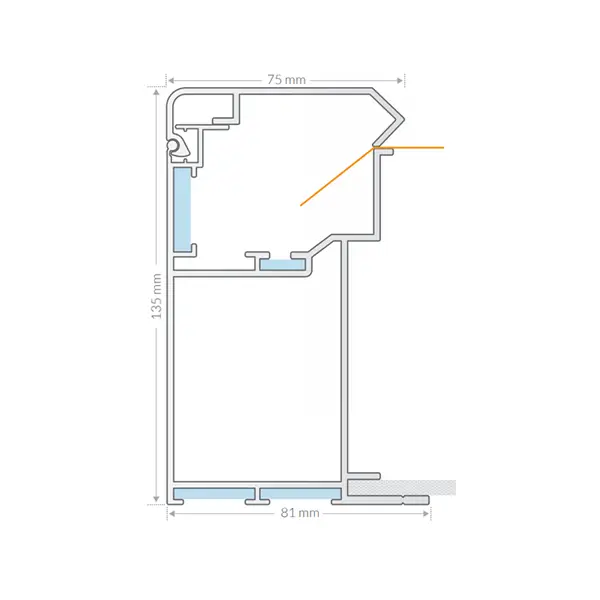

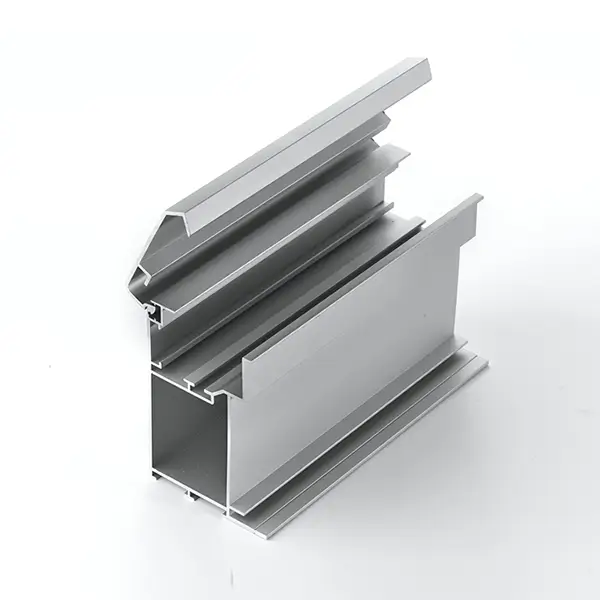

SPECIAL PROFILE : K-130 FACADE
The K-130 Facade Special Profile is a premium aluminium system designed for indoor and outdoor signage applications. Engineered with durability and precision, it is widely used in frame systems, POP displays, light boxes, retail fixtures, kiosks, trade shows, and custom interiors. Its backlit capability, robust structure, and sleek anodised finish make it a perfect choice for creating impactful visual communication. Easy to assemble and versatile in application, the K-130 ensures professional presentation with long-lasting performance.
Specifications
Material: Aluminium Alloy 6063-T6
Depth: Base – 117 mm | Cover – 75 mm
Frame Face / Thickness: 2 mm (Base & Cover)
Weight (Kg./Mtr.): Base – 2.40 | Cover – 0.710
Side Options: Single Side
Length Options: 4.0 mtrs / 5.0 mtrs
Surface Finish: Silver Satin Anodised (other finishes available on demand)
Lighting: Back-lit
Technical Specifications
Application Areas: Indoor & Outdoor usage
Signage Uses: Frame systems, POP displays, Light boxes
Display Uses: Retail fixtures, Kiosk systems, Trade shows, Custom interiors
Mounting Options: Free standing, Wall structure, Crowd control
Print Media Compatibility: PVC Flex & Fabric

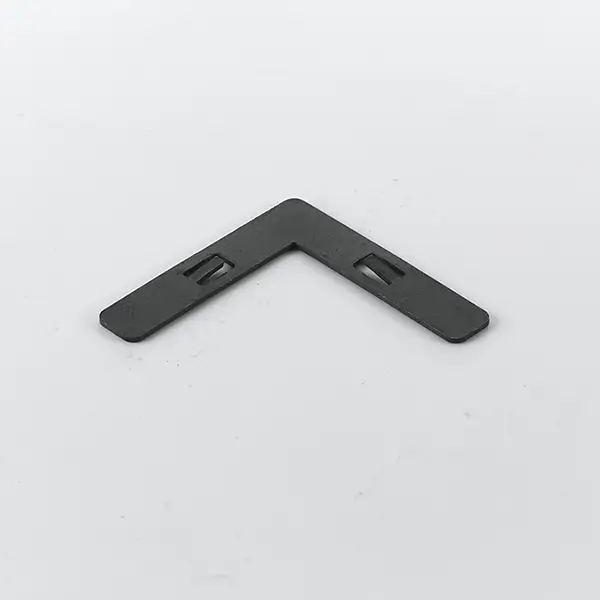

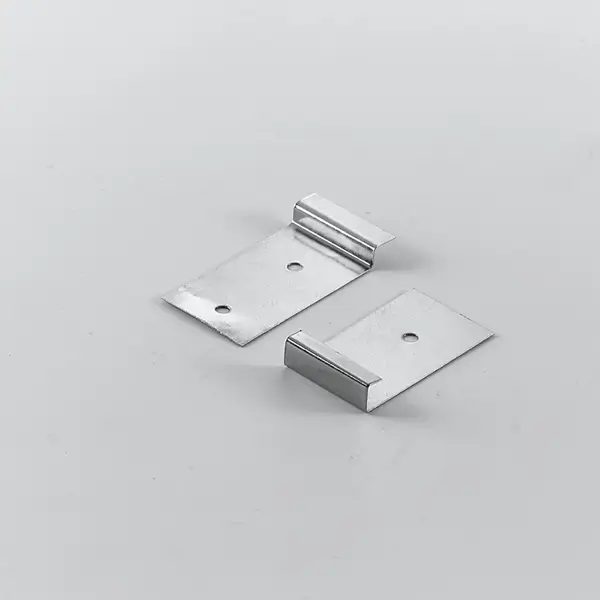

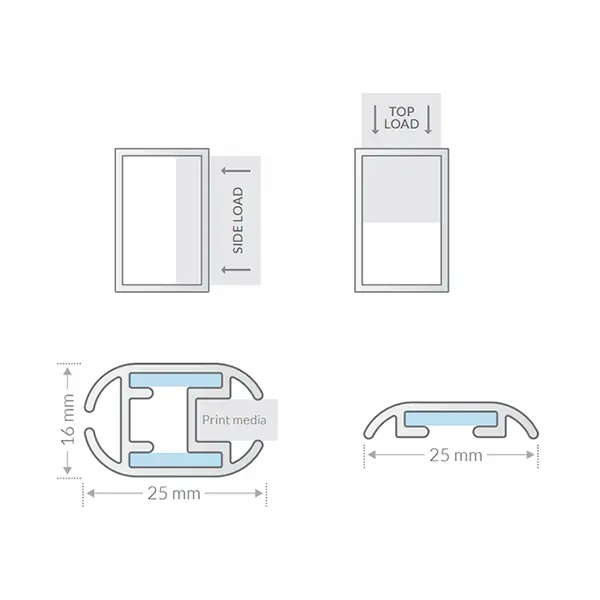

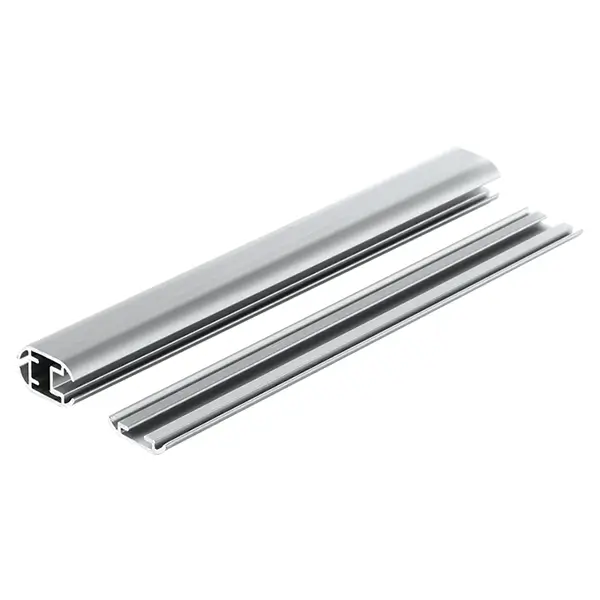

SPECIAL PROFILE : K-16 OVAL

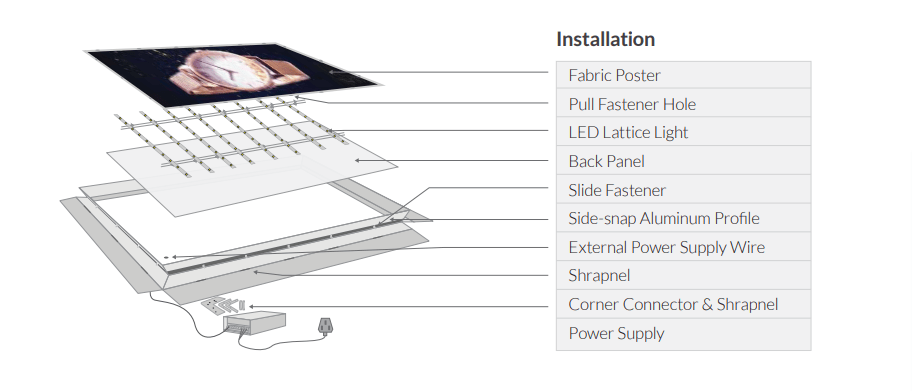

The K-16 Oval Special Profile is a compact and versatile aluminium system designed for indoor display solutions. Ideal for frame systems, POP displays, retail fixtures, cubes, trade shows, custom interiors, and wall-mounted or suspended signage, it offers both single and double-sided display options. With its lightweight structure, smooth satin anodised finish, and compatibility with multiple print media, the K-16 Oval ensures a professional, modern, and durable signage solution.
Specifications
Material: Aluminium Alloy 6063-T6
Depth: Base – 16 mm | Cover – 5 mm
Frame Face / Thickness: 1.5 mm (Base & Cover)
Weight (Kg./Mtr.): Base – 0.350 | Cover – 0.145
Side Options: Single Side & Double Side
Length Options: 4.0 mtrs / 5.0 mtrs
Surface Finish: Silver Satin Anodised (other finishes available on demand)
Lighting: Non-lit
Technical Specifications
Application Areas: Indoor usage
Signage Uses: Frame systems, POP displays
Display Uses: Retail fixtures, Cube structures, Trade shows, Custom interiors, Wall-mounted or Hanging displays
Mounting Options: Single side, Double side, Wall mount, Suspended display, Crowd control
Print Media Compatibility: PVC Foam Sheet, ACP, Acrylic (5 mm)
SPECIAL PROFILE : K - TOTEM
The K-Totem profile system is a highly flexible and intelligent signage solution designed for creating robust free-standing displays. Built with one basic profile and three decorative cover profiles (rectangular, elliptical, and rounded), the system provides full customization in terms of depth, structure material, and wall thickness. Its modular design allows the construction of strong and elegant totems up to 6 meters in height, making it ideal for impactful indoor and outdoor branding. With hidden screws for a seamless finish, K-Totem ensures easy panel replacement, low maintenance, and long-lasting durability.
Specifications
Profile System: One base profile + three decorative cover profiles (Rectangular, Elliptical, Rounded)
Depth Options: 100 mm, 150 mm, 200 mm (10, 15, or 20 cm)
Material Options: Aluminium or Steel (for internal structure)
Height Capacity: Up to 6 meters
Fixing System: Hidden screw assembly
Panel System: Easy lift-in / lift-out panels for quick replacement
Surface Finish: Silver Satin Anodised (other finishes on demand)
Technical Specifications
Application Areas: Indoor & Outdoor usage
Signage Uses: Totems, Pylons, Directional signs, Corporate branding structures
Display Options: Free-standing units with customizable height & shape
Design Flexibility: Choice of rectangular, elliptical, or rounded covers
Maintenance: Easy panel change and minimal upkeep
Structural Strength: Engineered for stability & durability even in large-scale installations

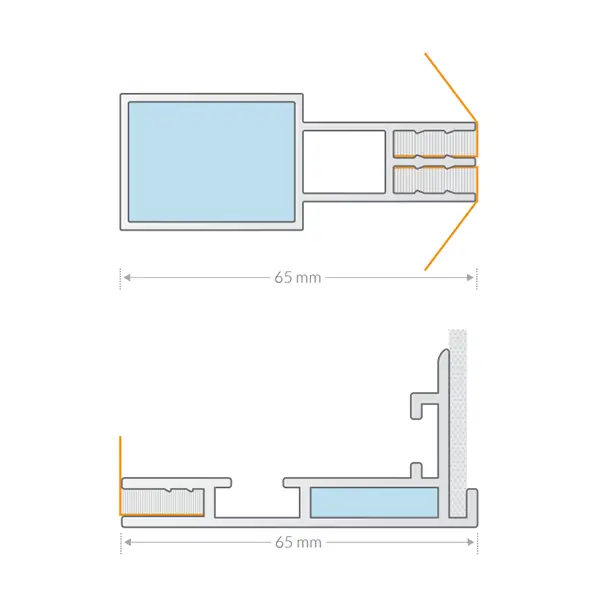

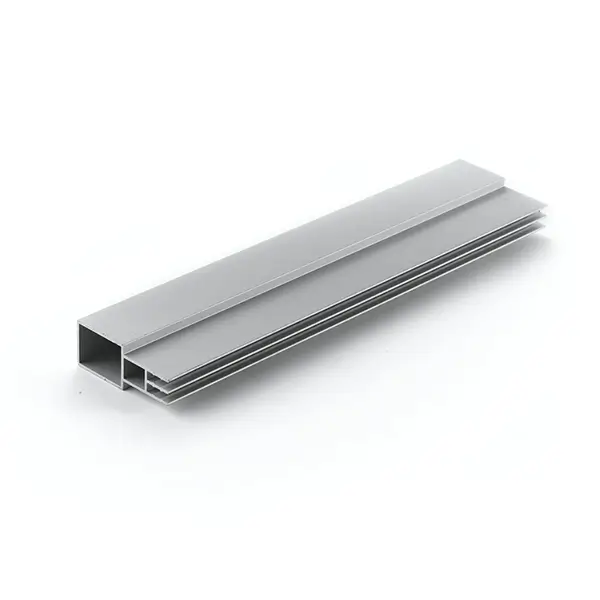

SPECIAL PROFILE : K - 65 CUBE
The K-65 Cube profile system is a versatile and durable signage solution designed for indoor applications such as retail fixtures, kiosks, trade shows, and custom interiors. With the flexibility to create two-sided, three-sided, or cube-shaped displays, it is an ideal choice for eye-catching branding and promotions. The system supports both non-lit and backlit options, making it suitable for impactful visual displays. Its design allows easy assembly using 90° cuts and ABS corner connectors, ensuring quick installation and structural stability.
Specifications
Material: Aluminium Alloy 6063-T6
Depth: 65 mm (Base & Cover)
Frame Face / Thickness: 2 mm (Base & Cover)
Weight per Meter: Base – 0.850 kg, Cover – 0.870 kg
Side Options: Cube, 2-sided, 3-sided
Length Options: 4.0 mtrs / 5.0 mtrs
Surface Finish: Silver Satin Anodised (other finishes available on demand)
Lighting: Non-lit / Backlit

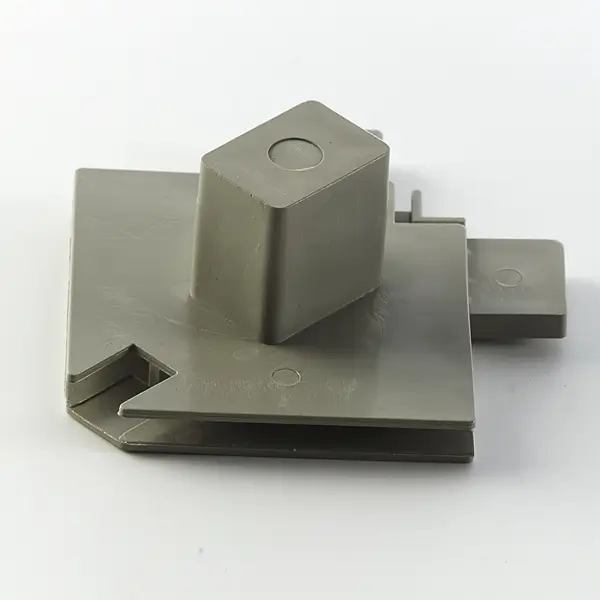

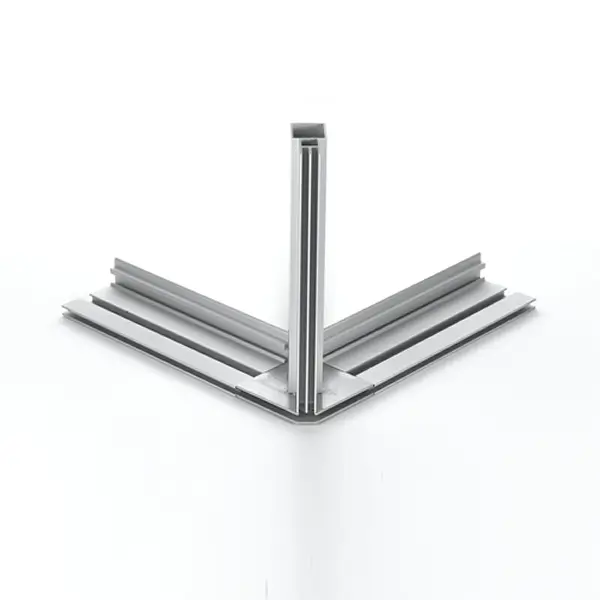

Assembly Requirement: Both profiles cut at 90° with ABS corner connectors
Usage:
K-65 Cube Vertical use – 4 pcs
K-65 Cube Horizontal use – 8 pcs
Technical Specifications
Application Areas: Indoor displays – Retail, Kiosks, Trade shows, Custom Interiors
Display Options: Cube, 2-sided, 3-sided, Four-sided, Suspended display, Pillar wrap
Print Media Compatibility: Fabric Media
Installation: Modular assembly with 90° cut profiles and ABS corner joints
Lighting Options: Suitable for both backlit and non-lit applications
Durability: Strong aluminium build with anodised finish for longevity
Flexibility: Can be used as standalone cubes, suspended structures, or wrapped pillars for maximum visibility

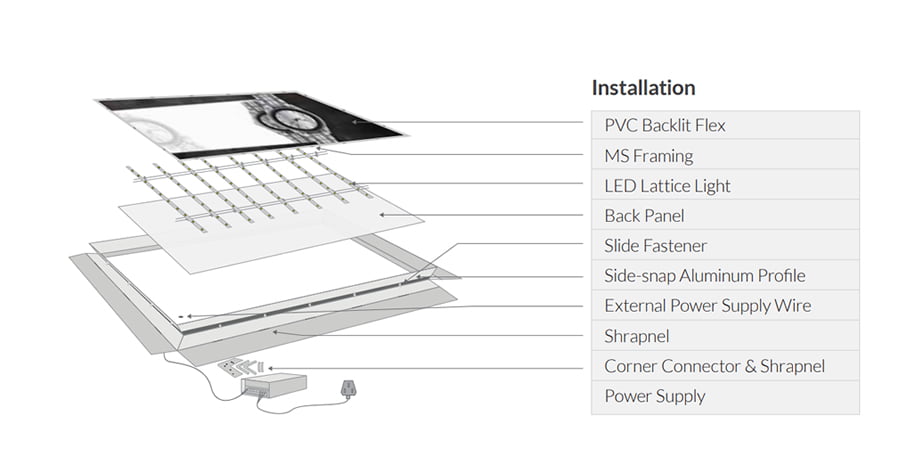

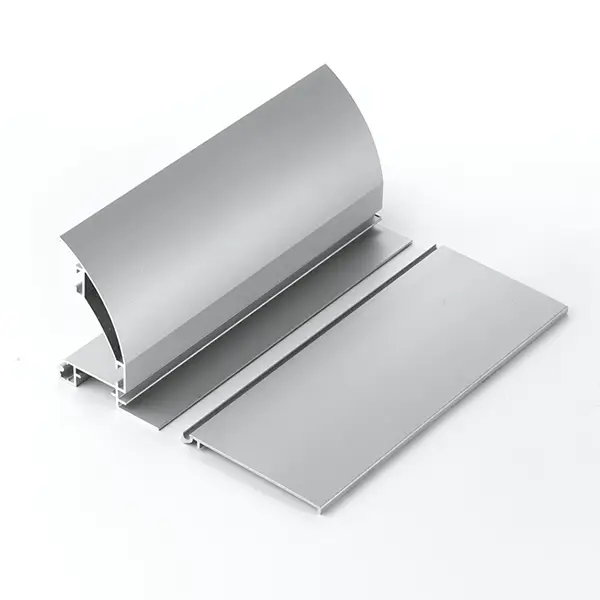

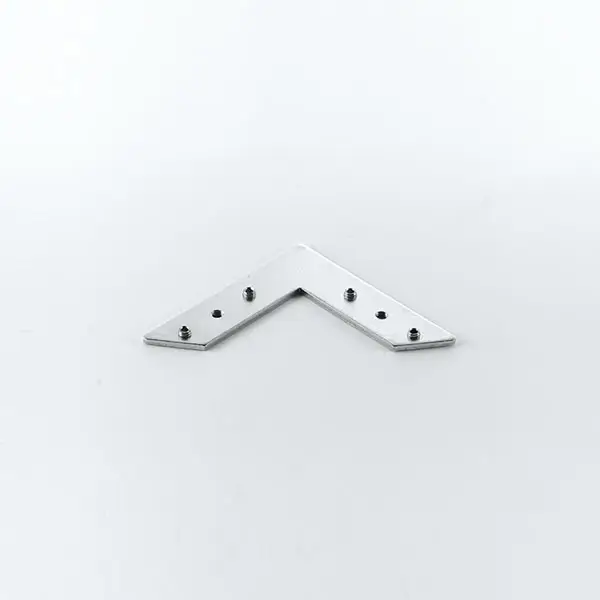

SPECIAL PROFILE : K - 83 FACADE
The K-83 Facade is an 80mm side-snap aluminium profile system designed using triangle mechanics to ensure maximum stability and strength, making it ideal for large-size engineering fabric light boxes. Its frameless front design provides a seamless advertising surface, breaking visual limits and delivering 100% display impact. The hidden accessory system (shrapnel, slide fasteners, etc.) ensures a clean and professional look, while allowing easy poster changes. Perfect for airports, high-speed rail stations, shopping malls, retail outlets, and trade shows, the K-83 Facade is a premium solution for both indoor and outdoor advertising.
Specifications
Material: Aluminium Alloy 6063-T6
Depth: Base – 83 mm | Cover – 83.10 mm
Frame Face / Thickness: Base – 1.5 mm | Cover – 1.5 mm
Side Options: Single Side
Length Options: 4.0 mtrs / 5.0 mtrs
Surface Finish: Silver Satin Anodised (other finishes available on demand)
Lighting: Backlit
Mounting Options: Fabric & PVC Backlit Flex with Cable Tie + Rivet, MS Framing Structure
Technical Specifications
Application Areas: Indoor & Outdoor – Airports, High-speed rail stations, Shopping malls, Trade shows, Retail interiors
Display Options: Backlit, Single Side, Free Standing, Wall Structure, Crowd Control
Print Media Compatibility: PVC Flex & Fabric (supports both standard and backlit material)
Design Advantage: Frameless front for uninterrupted visuals with hidden accessory integration
Installation: Easy poster replacement with shrapnel & slide fasteners; fabric/PVC mounted via rivets & MS frame structure
Durability: Engineered under triangle mechanics to maintain structural integrity even under heavy stress
Aesthetic: Sleek, seamless design with silver satin anodised finish (custom finishes available)
